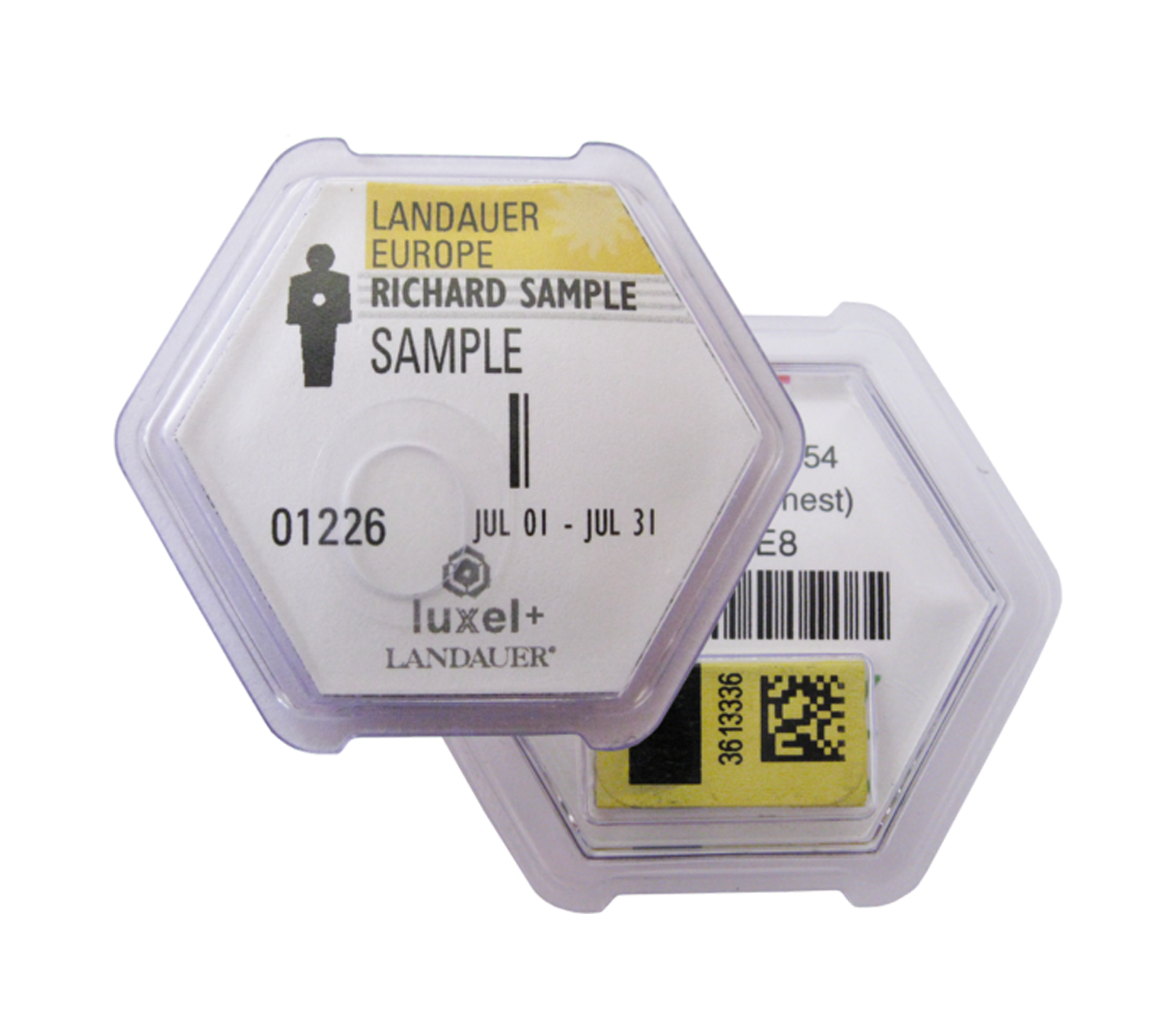

LUXEL+® & NEUTRAK®: High performance integrated neutron dosimeter

LANDAUER^® provides you with LUXEL+ & NEUTRAK, a unique and single dosimeter incorporating the Neutrak detector in the LUXEL+ badge. The dosimeter is used to measure X-rays, gamma and beta radiation, as well as thermal, intermediate and fast neutrons.

The most compact dosimeter on the market
Wide energy range: from thermal to 40 MeV
Comply with ISO standard 21909:2005
Highly sensitive CR-39 detector

Personal dosimeter
Specoial accident

Download the datasheet

Technical performance Models Main features Accessories Related products

Technical performance

Type of radiation measured	Result of the LUXEL+ dosimeter
Type of radiation measured	Photons	Bêta
Personnal dose equivalent	H_p(10) and H_p(0.07)	H_p(0.07)
Dose range	0.01 mSv to 10 Sv	0.1 mSv to 10 Sv
Measurement reproducibility	< 5%
Energy response (average energy)	H_p(10): 5 keV to 6 MeV	240 keV to 800 keV

Type of radiation measured	Result of the NEUTRAK dosimeter
Type of radiation measured	Thermal neutrons	Intermediate and fast eutrons
Personnal dose equivalent	H_p(10) whole body
Dose range	0.20 mSv to 250 mSv	0.20 mSv to 250 mSv
Energy response (average energy)	thermal range	40 keV to 40 MeV

Models

NEUTRAK – J

NEUTRAK 144 – J is our standard for intermediate and fast neutron monitoring. This detector uses a polyethylene radiator for fast neutrons, recoil protons resulting from neutron interactions in the dosemeter produce damage tracks in the CR-39 detector. It is wrapped in a white label.

NEUTRAK – T

NEUTRAK 144 – T is developed for thermal, intermediate, and fast neutrons. The left area of the chip uses a polyethylene radiator for fast neutrons. The right area uses a boron loaded Teflon® radiator that also records alpha particle produced by the interaction of thermal neutrons with the boron radiator.
