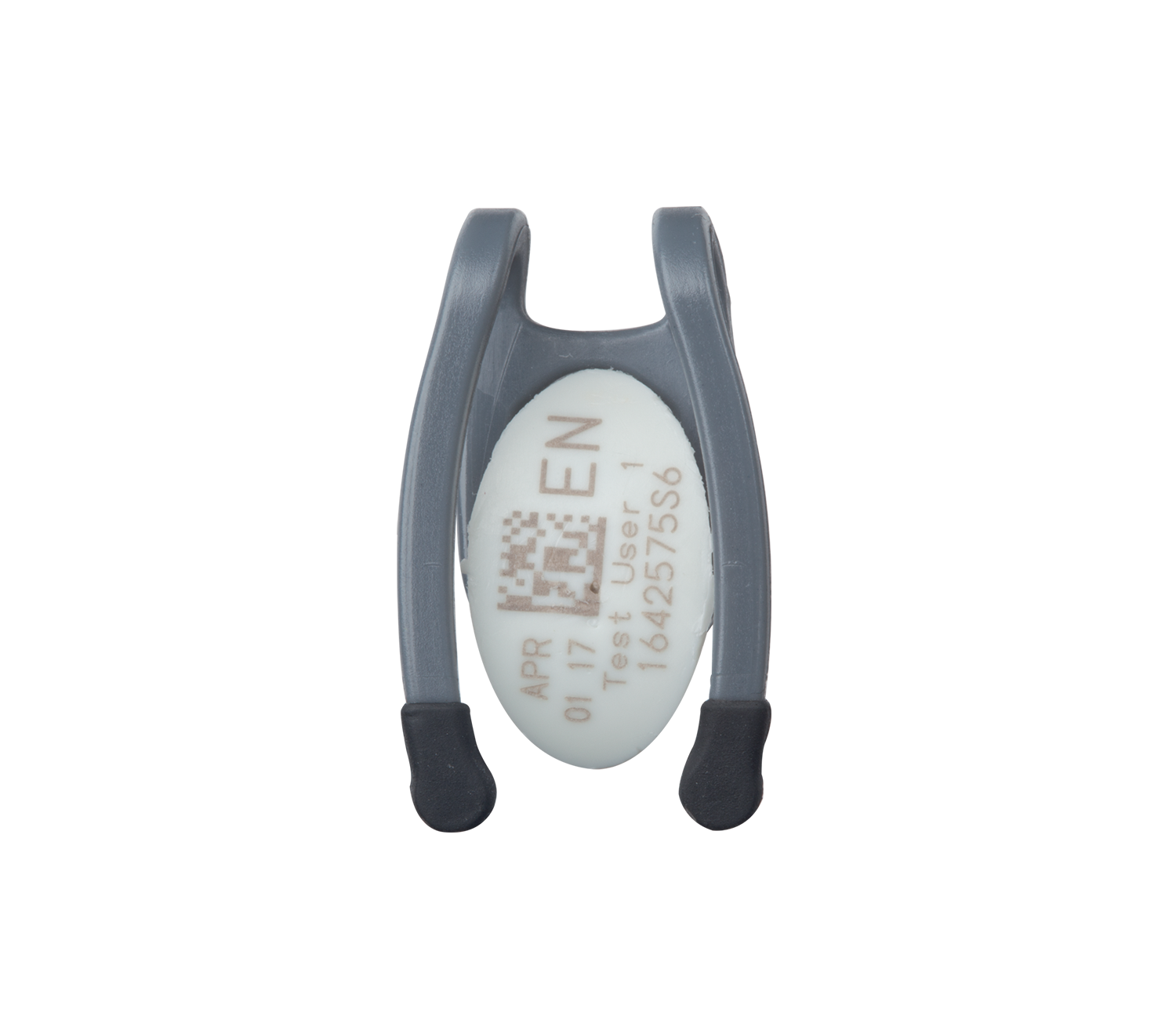

VISION®: Discrete and versatile multi-support lens dosimeter
Ergonomic, light and small, the VISION dosimeter does not affect the user’s activity and view. It is made from a plastic resistant to twisting. The dosimeter is flexible and can be placed close to the eye, providing a more accurate measurement of the lens of eye dose.
- Ergonomic
- Small and Compact
- Laser etched wearer information
- Sensor protected inside an ultrasonically sealed cap
- Hp(3) individual dose equivalent
>> Download the decontamination instruction <<
Download the datasheet
Ergonomy
Ergonomic, light and small, the VISION dosimeter does not affect the user’s activity and view. It is made from a plastic resistant to twisting.

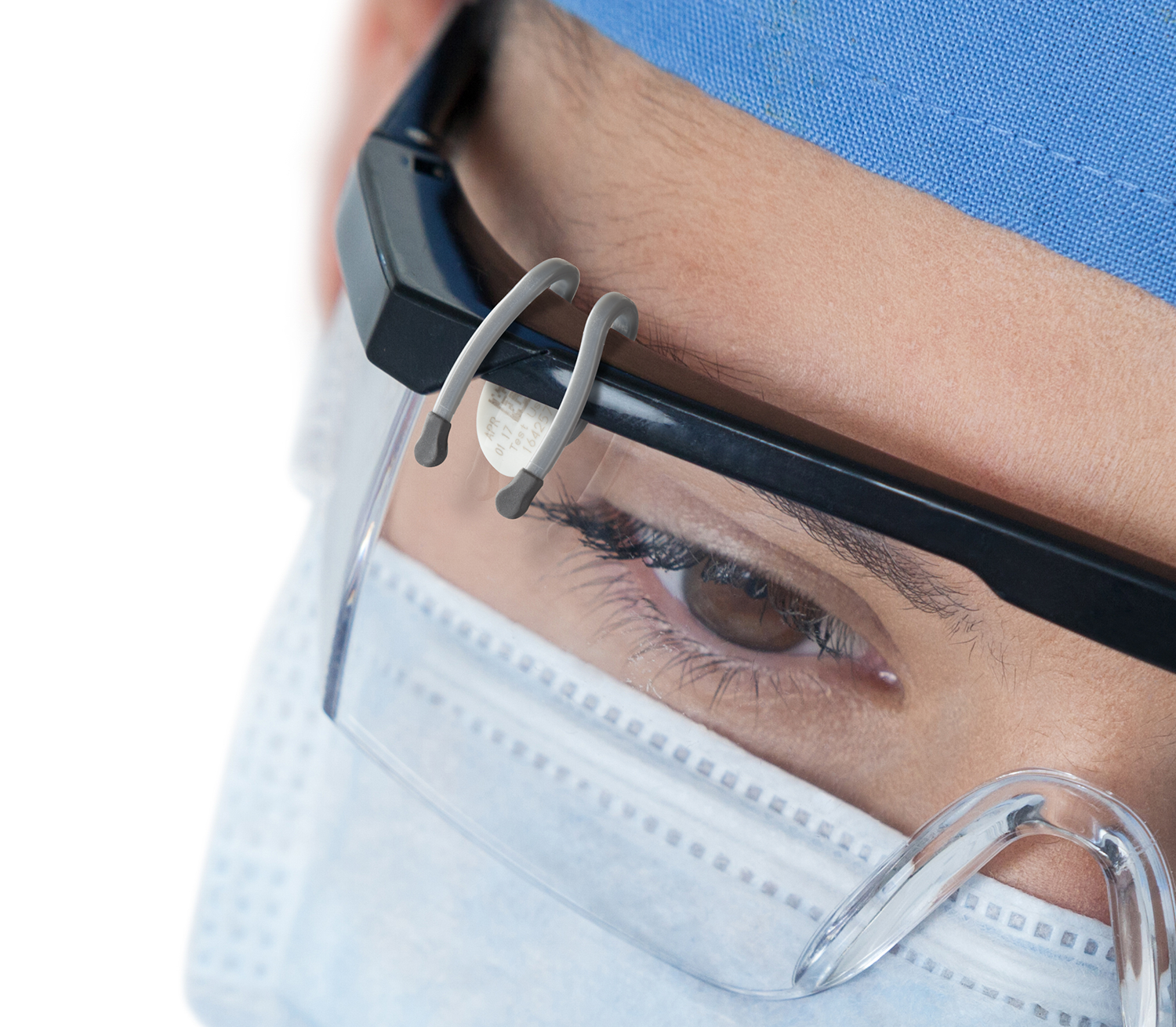

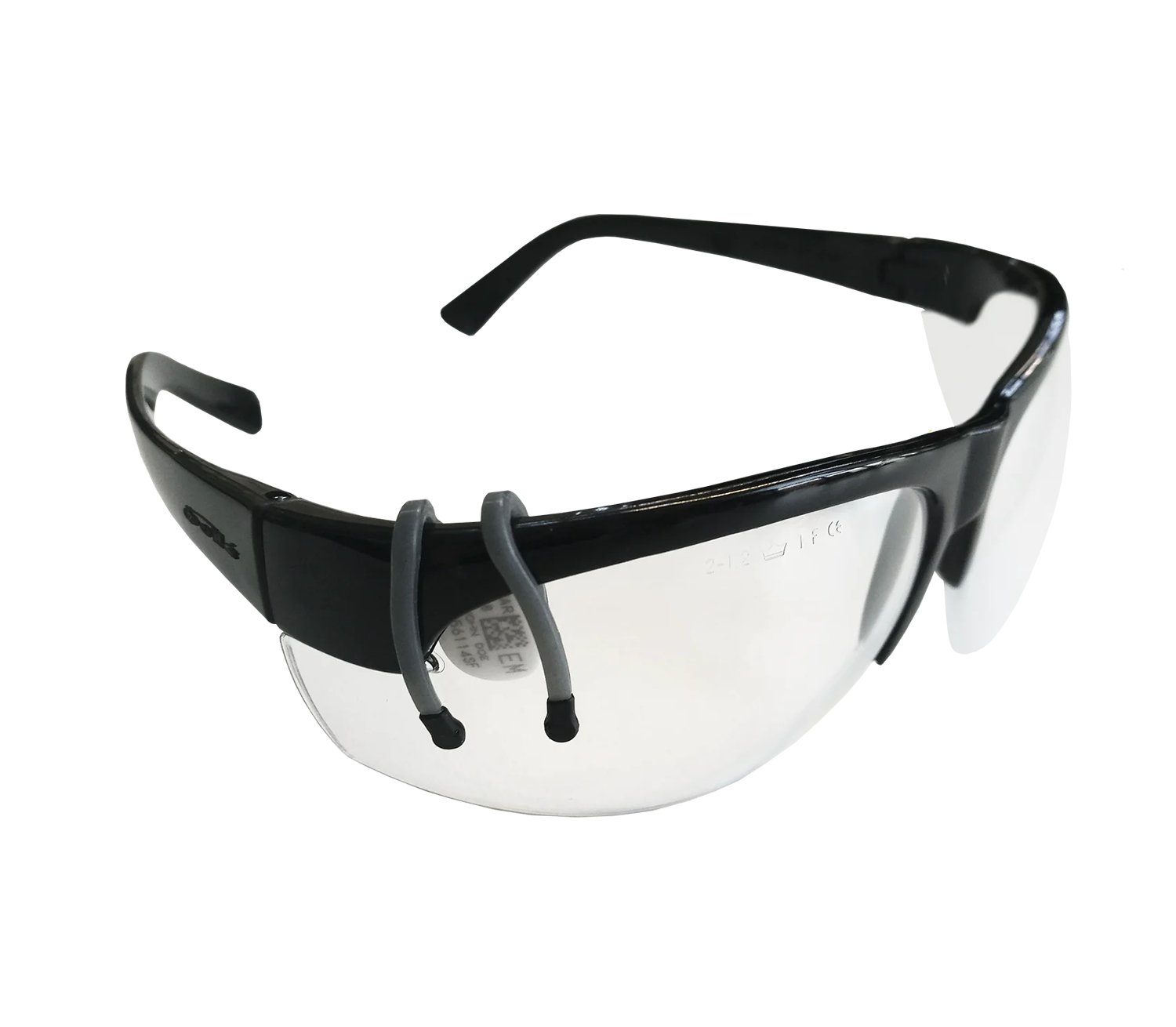

The dosimeter is flexible and can be placed close to the eye, providing a more accurate measurement of the lens of eye dose. The VISION lens of the eye dosimeter is to be worn in conjunction with radiation safety glasses or safety shields, with the detector behind the shielding.
If the field is uniform or shielding is not present, the VISION dosimeter should be placed as close to the eye as possible without interfering with the field of view.

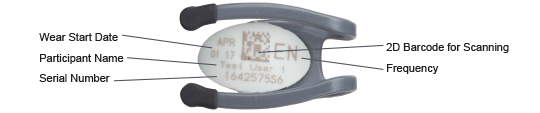

The cap with titanium oxide particles is laser etched for permanent marking and identification. This also allows for easy cleaning.
Technical performance
| Types of radiation measured | Photons (X or gamma) |
| Personal dose equivalent | Hp(3) |
| Dose range | from 0.1 mSv to 10 Sv |
| Minimum reporting value | 0.1 mSv |
| Linearity response | from 0.1 mSv to 10 Sv Standard deviation < 9 % |
| Energy response (mean energy) | from 24 keV to 1.25 MeV |
| Angular response | ± 60° from 24 keV to 1.25 MeV |
General characteristics
Detector: TLD badge
Badge material: LiF:Mg,Ti (magnesium and titanium doped lithium fluoride)
Laboratory qualification
- Dosimeter characterization carried out by an independent reference laboratory: Henri Becquerel French National Laboratory (LNHB) – CEA
- Participation in national and international inter-comparisons
- HSE and Ireland’s EPA approved dosimetry service
