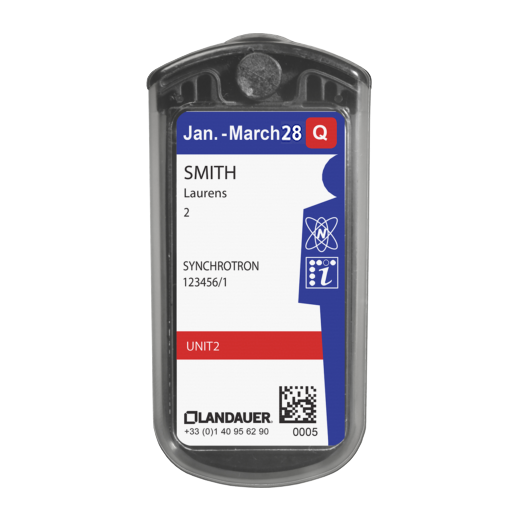

IPLUS®: a state-of-the-art dosimeter

IPLUS is a passive dosimeter ready to use. It incorporates OSL technology developed by LANDAUER and used by 200 dosimetry laboratories worldwide.

Robust, compact and light, IPLUS has been tested by the Laboratoire National Henri Becquerel (LNHB), an independent laboratory, and has shown the following performances:

  • Excellent energy response for Hp(10) photon: from 15 keV to 6 MeV from 0 to ±60°
  • Excellent energy response for Hp(0.07) beta: from 0.24 to 0.8 MeV from 0 to ±45°
  • Linearity deviation < 5% from 0.05 mSv to 10 Sv for Hp(10) and Hp(0.07)

Area monitoring

Personal dosimeter

Workstation study

download iconDownload the datasheet
IPLUS®: a state-of-the-art dosimeter
Ergonomy Technical performance Packaging Main Features Identification Certifications Accessories Related products

Ergonomy

IPLUS can accommodate for two additional detectors in the same housing:

  • NEUTRAK® (neutron dosimeter of CR-39 type)
  • Imaging® to determine the exposure conditions in static or dynamic conditions

Technical performance

Developed by our R&D team in France, the IPLUS personal dosimeter can measure Hp(10) and Hp(0.07) dose equivalents.

IPLUS complies with standard EN 62387:2016.

Its characterization by an independent laboratory (LNHB) even shows metrological performance significantly higher than the standard requirements.

  • Linearity deviation < 5% for the whole measuring range
  • Energy dependence < 11%
Result of the IPLUS dosimeter
Whole body and wrist Area
Type of measured radiation Photons Beta Photons
Personal dose equivalent Hp(10) and Hp(0.07) Hp(0.07) H*(10)
Dose range 0.05 mSv to 10 Sv
Linearity response 0.05 mSv to 10 Sv – Standard deviation < 5 %
Measurement reproducibility < 5 %
Energy response
(mean energy)		 Hp(10): 15 keV to 6 MeV 240 keV to 0.8 MeV (Emean) 24 keV to 1.33 MeV
Hp(0,07): 15 keV to 1.33 MeV
Energy dependency better than 11 %
Angular response
(horizontal and vertical angles)		 Hp(10): ± 60° from 15 keV to 6 MeV ± 45° from 240 keV to 0.8 MeV (Emean) ± 60° from 24 keV to 1.33 MeV
Hp(0,07): ± 60° from 15 keV to 1.33 MeV
Angular dependency Excellent – Average deviation < 6 %*
Fading < 1.5 % / month
Neutrons detection Insensitive to neutrons

* Mean deviation with respect to real response

Chest packaging

Dimensions: 35 x 74 x 10 mm
Weight: 17 g

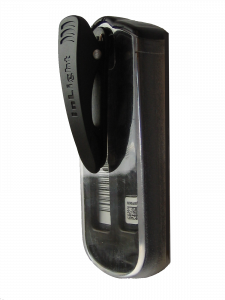

Standard clip for IPLUS

Wrist packaging*

Dimensions: 65 x 70 x 5 mm
Weight: 6,5 g

*Beware the Bracelet must be ordered apart.

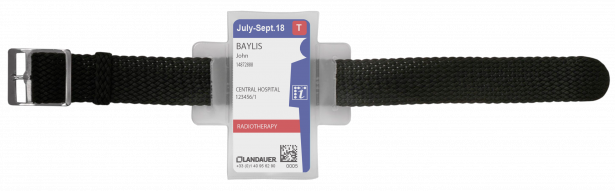

IPLUS adapted for wrist monitoring

Main Features

Types of radiation measured: Photons (X and gamma), beta

Detector : GN, new filter

Technology : Aluminium oxyde doped with carbone, Al2O3:C

Learn more about OSL technology

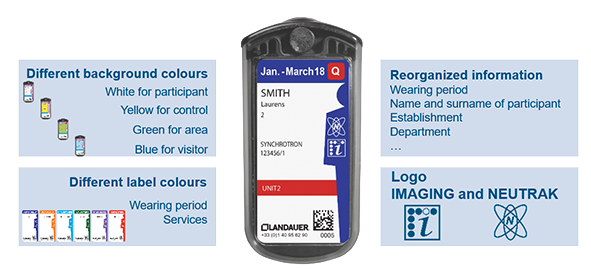

Easy identification

Certifications

  • COFRAC NF EN ISO/IEC 17025 Certification: 2005, scope n°1-1545, available on www.cofrac.fr
  • Approved in Belgium by the FANC (Federal Agency for Nuclear Control)
  • Participation in national and international inter-comparisons
  • Dosimeter characterization completed by the Laboratoire National Henri Becquerel (LNHB) – CEA
